AHCC Off Grid Controller 40Aac MPPT 90-520V RS485/TCP

Contact Now
Qingdao Greef New Energy Equipment Co., Ltd
Visit Website
City:qingdao
Province/State:shandong
Country/Region:china
Contact Person:MsChristina Lei
Contact Now

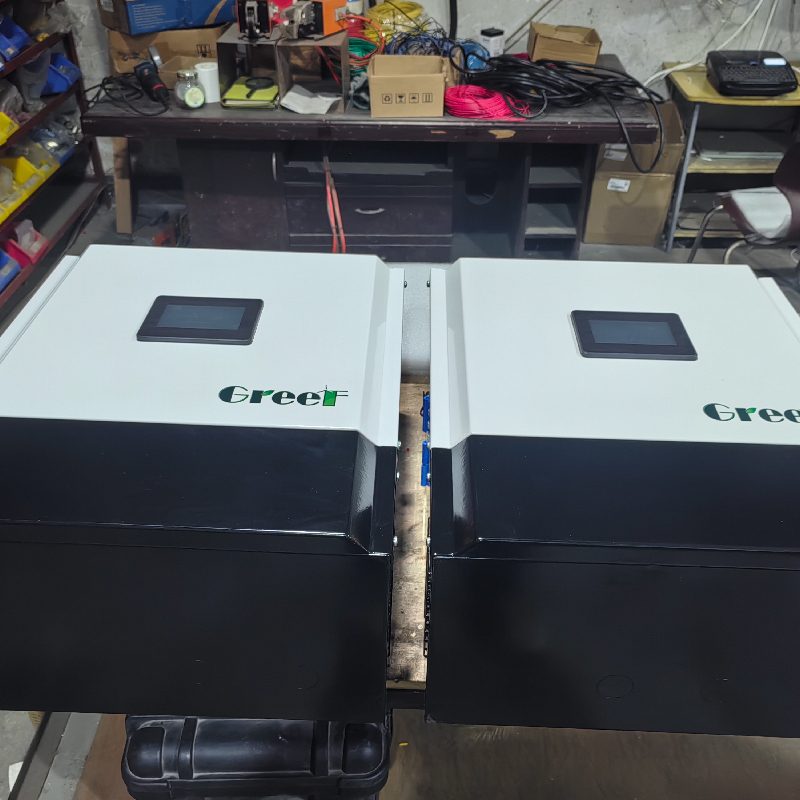

AHCC Off Grid Controller 40Aac MPPT 90-520V RS485/TCP

Ask Latest Price
Video Channel
Brand Name :Greef
Model Number :AHCC
Place Of Origin :CHINA
Certification :CE
MOQ :1Set
Price :Negotiable
Packaging Details :Foam+plywooden Case
Delivery Time :25 Working Days
Payment Terms :T/T,Western Union,MoneyGram,L/C
Supply Ability :Supply Ability
Rated unloading current :40Adc/50Adc/100Adc
Model :AHCC
Rated Input Current :40Aac/80Aac
Nominal System Voltage :42-240Vdc/200-1000Vdc (parameters Adjustable Depending On Type Of Energy Storage)
Communication interface :Standard: RS485/TCP
Application :Solar System Or Wind Turbine Or Generator System
Battery Type :Lead-acid Batteries, Lithium Batteries, DC Bus Bars, Etc.
MPPT voltage range :90~520V Customized/220~530Vac
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

Product Description:

The Off-grid Controller:

The Off-grid Controller is a crucial component in wind generator systems, playing a significant role in converting Three AC current from the wind turbine into DC current to charge the battery bank. Among these, the GREEF wind off-grid controller stands out for its technological advancements, offering enhanced electricity production capabilities through specialized MPPT technology. It incorporates cutting-edge features like modular design, electrical isolation, PWM unloading, and host computer control.

One of the standout features of the GREEF wind off-grid controller is its user-friendly interface, boasting a large touchscreen and IoT functionality. This allows for efficient, safe, and intelligent power generation, as well as streamlined operation and maintenance management.


System Solution
We can tailor a system to your specific needs. If you would like to learn more about our products, please contact us.

Applications:

The AHCC Off-Grid Controller is designed to be compatible with various off-grid renewable energy systems, including off-grid wind power generation systems, off-grid hydroelectric power generation systems, and off-grid solar power generation systems.

This versatile controller is suitable for integrating with off-grid setups that utilize wind, hydroelectric, or solar power generation technologies. It offers a solution for managing and optimizing the power produced by these renewable energy sources efficiently.


Product Paramenters
Model
AHCC-5KW
AHCC-10KW
AHCC-20KW
AHCC-30KW
Rated power
5KW
10KW
20KW
30KW
Product Type
MPPT, high frequency isolated new energy converter
DC output side
Type of energy storage
Lead-acid batteries, lithium batteries, DC bus bars, etc.
Rated output current
100A
200A
80A
150A
Output Voltage Range
42-240Vdc (parameters adjustable depending on type of energy storage)
200-1000Vdc (parameters adjustable depending on type of energy storage)
Voltage stabilization accuracy
≤±0.5%
Stabilization accuracy
≤±1%
Wind turbine input side
Rated voltage
48Vac-380Vac
380 Vac
Maximum withstand voltage
290Vac-530Vac for 5 seconds
600Vac for 5 seconds
MPPT voltage range
90~520V customized
220~530Vac
Maximum power
10kW
20kW
40kW
60KW
Rated Input Current
40Aac
80Aac
40Aac
80Aac
Input protection
Fuses; lightning protection circuits
Unloading side
Unloading method
PWM
Rated unloading current
40Adc
100Adc
50Adc
100Adc
Maximum withstand current
60A
200A
200A
400A
Working environment conditions
Ambient temperature
-25℃~50℃
Storage temperature
-40℃~75℃
Relative humidity
0 to 95%
Height above sea level
3000m full load output
Communication interface
Standard: RS485/TCP
Size of the controller (mm)
485×267×450mm
485×267×450mm
343×605×970mm
343 x 605 x 970mm
Controller Weight
29.5kg
38.5kg
61.5Kg
71.5Kg
Size of the Dump load (mm)
695×131×194mm
700×450×750mm
820×620×900mm
900 x 700 x 1270mm
Dump load Weight
18kg
40kg
80kg
120Kg

Customization:

Product Customization Services:

Brand Name: Greef

Model Number: AHCC

Place Of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1Set

Price: Negotiable

Packaging Details: Foam+plywooden Case

Delivery Time: 25 Working Days

Payment Terms: T/T, Western Union, MoneyGram, L/C

Supply Ability: Supply Ability

Rated unloading current: 40Adc/50Adc/100Adc

Height above sea level: 3000m Full Load Output

Communication interface: Standard: RS485/TCP

Rated Input Current: 40Aac/80Aac

Maximum withstand voltage: 290Vac-530Vac/600Vac For 5 Seconds

Keywords: DCS Distributed Control System, wind controller, Controller Monitor


Packing and Shipping:

Product Packaging:

The Off Grid Controller is carefully packaged in a sturdy cardboard box to ensure its protection during transit. Inside the box, the controller is placed in a foam insert to prevent any damage from impacts. The packaging is designed to be eco-friendly and recyclable.

Shipping:

Orders for the Off Grid Controller are typically processed within 1-2 business days. We offer standard shipping options as well as expedited shipping for those who need their controller quickly. All orders are shipped with a trusted carrier to ensure safe and timely delivery. Customers will receive a tracking number to monitor the status of their shipment.
